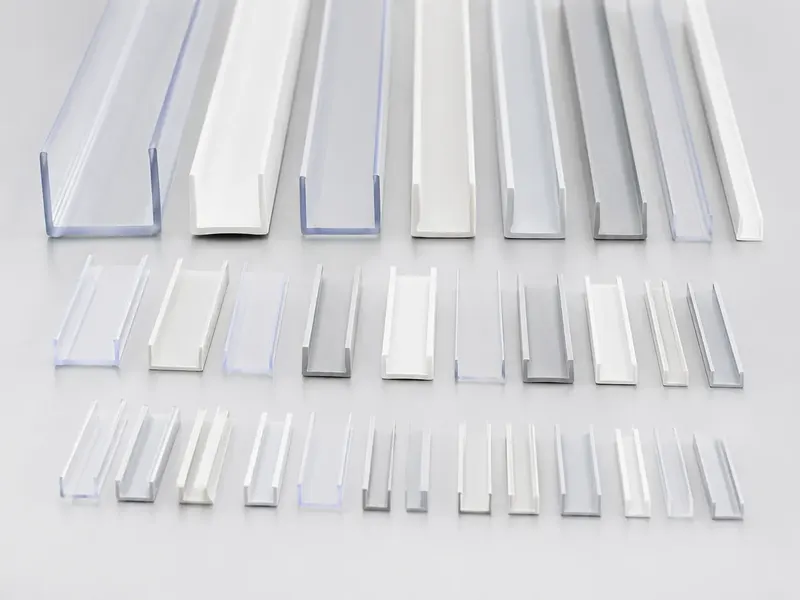

PVC U-Channel and Edge Trim Overview
PlastiPipe supplies PVC U-channel and edge trim profiles for B2B projects that need a clean cover over exposed glass, sheet-metal, composite-panel or furniture edges. The extrusion can be designed as a rigid guide channel or a slightly flexible protective trim.
Typical Applications

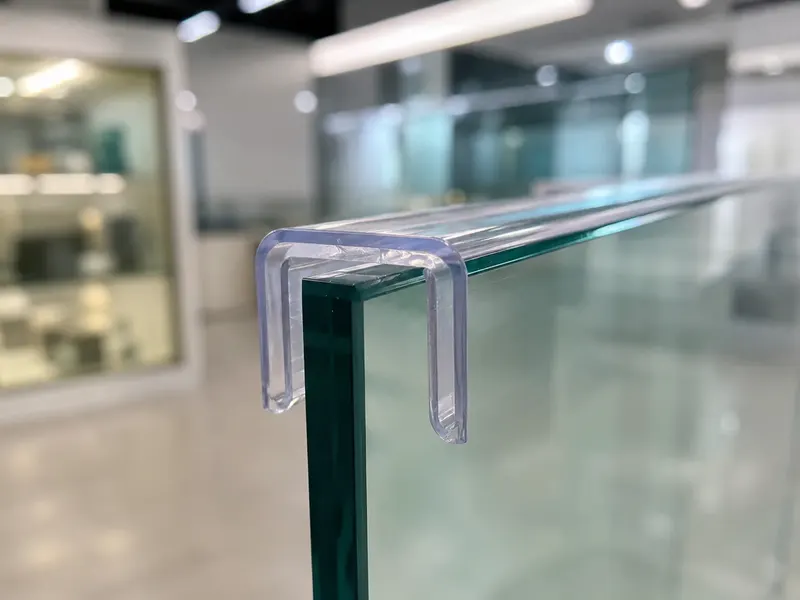

- Glass panel and display-case edge protection
- Sheet-metal and equipment-panel finishing
- Composite board and furniture edge covering
- Anti-scratch and anti-impact protection
- Guide channels and lightweight assembly profiles
Custom Options
| Item | Available Direction |
|---|---|
| Slot Width | Matched to panel or glass thickness |
| Channel Depth | Standard or drawing-based |
| Wall Thickness | Uniform or function-specific |
| Hardness | Rigid or semi-rigid PVC |
| Color | Clear, white, gray or custom |
| Length | Standard, cut-to-length or coil where feasible |
| Processing | Cutting, notching, punching or assembly review |
Installation Fit
The channel should fit the full thickness tolerance of the panel without excessive looseness or installation force. Edge radius, corner transitions and retention method should be included in the review.
What to Send for Quotation
Provide the panel material and thickness range, required channel depth, wall thickness, length, color, quantity, installation method, packaging and destination port.
Related Products
FAQ
How should the slot width be selected?
The internal slot should be matched to the actual panel thickness, tolerance and required grip. Send the panel thickness range and a cross-section drawing or sample.
Can the channel be rigid or semi-rigid?
Yes. Material hardness and wall geometry can be reviewed according to installation method, edge radius and required retention.
What should buyers send for quotation?
Send panel thickness, channel depth, wall thickness, length, color, quantity, application and destination port. A sample or drawing is recommended.
